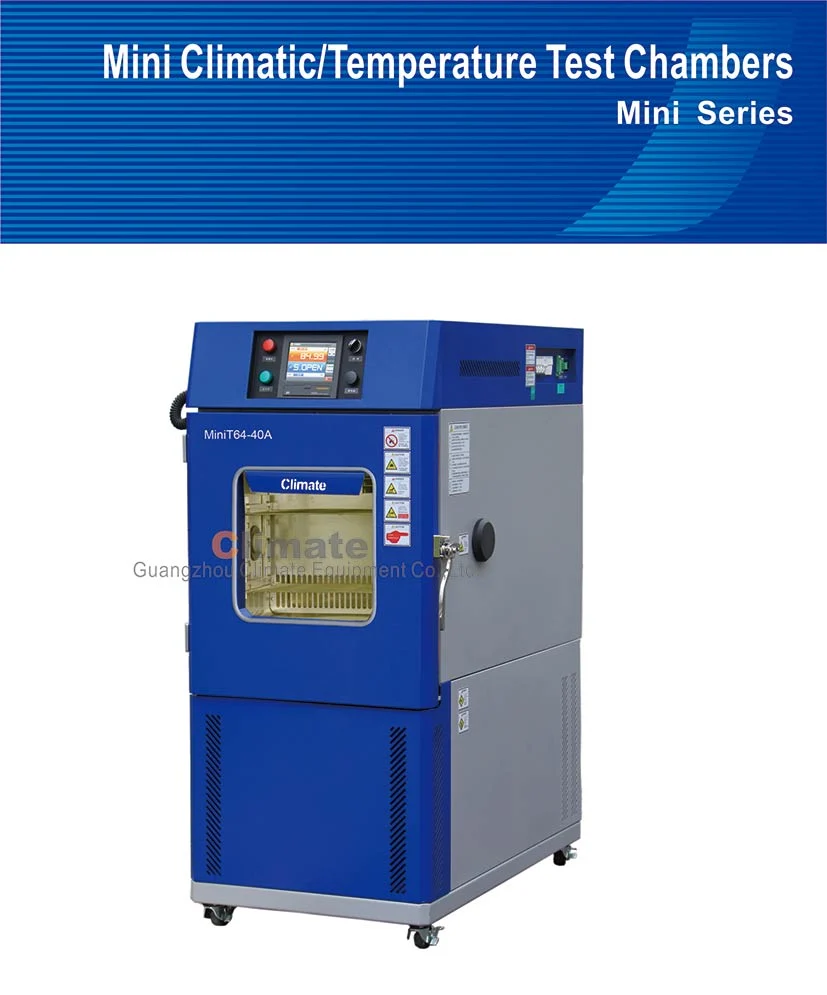

Mini High Temperature and Humidity / High and Low Temperature Test Chamber



Scope of application
This type of product is simulated product under the combination of climate and temperature and humidity (such as high and low temperature operation & storage, temperature cycle, high temperature and humidity, low temperature and low humidity, condensation test, etc.), to detect whether the product's own adaptability and characteristics are changed.
Need to meet the requirements of international standards (IEC, JIS, GB, MIL...) to achieve consistency in international measurement procedures.

Characteristic

Inside: Double-sided galvanized sheet, anti-static surface.
Outside: stainless steel 304
Insulation: polyurethane and fiberglass
Seal: High purity silicon rubber raw material(Toshiba), effectively prevent aging
Heater: Nickel-chromium alloy heater
Humidifier(C): Outer tube: seamless stainless steel SUS316
             Internal heating wire: Nickel-chromium alloy wire
Sample holder: 10kg/floor * 2 floors (standard)
               20kg/floor, 30kg/floor
Total capacity 60kg (option)



Refrigeration design
Modular production, reliable quality, easy maintenance
By using silver brazing rods with a silver content of 45% in the vibration pipeline welding, can effectively prevent weld leakage
Enough space for easy operation
Using nitrogen gas during welding to ensure no oxidation inside the tube
Adopting a variety of process for shock absorption
Adopting various processes to prevent rust

Compressor
Tecumseh Compressor of France (original imported)
DANFOSS compressor of Denmark (original imported)


Pressure relay
American EMERSON or Danish DANFOSS

Evaporator
Custom-made high efficiency fin heat exchanger

Solenoid valve
CASTEL of Italy

Refrigerant (HFC Environmental Refrigerant)
R404a
R23 (-70)

Danish DANFOSS Brands
Condenser
Condensation Evaporator (-70)
Evaporation pressure regulator (C)
Thermal expansion valve
Dry filter
Condensation pressure regulator (W)


Control system
Controller
·5.7 inches 640*480 dot matrix, TFT color LCD display
·1200 programs which is recyclable
·RS-485 port, function of remote communication
·SD storage card to record the data for about 7500 days (sample for 5 min)
·Language: Chinese or English

Recorder
·Large LED display
·High reliability in requirements of industrial recorder

Sample power control terminal
·When the safety protection device works, the power supply of the power sample is controlled through this terminal.

Safety protection device
·Compressor
A.Compressor over-voltage
B.Compressor motor overheat
C.Compressor motor overflow (A)
D.Condenser fan motor overheat (W)

·Waterway (C)
A.Heating pipe dry burning
B.Abnormal of water supply
C.Abnormal of water drain

·Test sample protection
A.Adjustable overtemperature protection
B.Air conditioning channel limit overtemperature
C.Stop alarm of overtemperature
D.Sample terminal protection

·Electrical control
A.Fan motor overheat
B.Main power phase sequence protection
C.Electric leakage protection
D.Short circuit protection


Mini Series Product Features Technical Specifications
The main technical parameters
Temperature fluctuation: ≤±0.5°C
Temperature uniformity: ≤2.0°C
Temperature deviation: ≤±2.0°C
Humidity range
20-98% RH (C
Humidity deviation: ≤±3.0%RH (>75%RH)
≤±5.0%RH(<75%RH)(C)
Thermostat and humidity control method: BTHC balanced thermostat and humidity control method (C)
Ambient temperature: +5°C~+35°C
Power Supply (V)AC380±10%V5OHz±0.5Hz
Equipment noise: ≤69dB (measured at 1m in front of the door)
Standard configuration: 1 observation of electrothermal film glass, cable hole
(Φ100)2, sample rack 2 sets,
1 light fixture, 4 casters, sample
Power control terminal 1

Executive standard
GB/T5170.2-2008 temperature test equipment
GB/T5170.5-2008 Damp heat test equipment (C)
GB/T2423.1-2008 (EC68-2-1) Test A
Low temperature test method
GB/T2423.2-2008 (EC68-2-2) Test B
High temperature test method
GB/T2423.3-20061EC68-2-3) Test Ca:
Constant damp heat test (C)
GB/T24234-2008 (EC68-2-30 test Db
Alternating Humidity Test (C)
GJB150.3A-2009 (MIL-STD-810F-2000)
High temperature test
GJB150.4A-2009 (MIL-STD-810F-2000
Low temperature test
GJB150.9A-2009 (MIL-STD-810F-2000)
Damp heat test (Figure 1, Figure 2) (C)


ModelMiniC/T64MiniC/T180MiniBT64
-20A/W-40A/W-70A/W-20A/W-40A/W-70A/W-20A/W-40A/W-70A/W
Inner Volume(L)6418064
Inner dimensionW400600400
(mm)H400600400
 D400500400
Outside DimensionW600800560
mmH14001750830
 D1004 (T)/ 1344 ( C )1204 (T)/ 1544 ( C )1200
Temperature rangeMiniC/T**-20:-20°C~+150°C;       MiniC/T**-40:-40°C~+150°C;   MiniC/T**-70:-70°C~+150°C
Temp Rise time -20°C~+150°C≤60min;       -40°C~+150°C≤60min;        -70ºCC~+150°C≤80min
Temp Down timeMiniC/T**-20:+20~-20ºCC≤40min;       MiniC/T**-40:+20~-40°C≤60min;   MiniC/T**-70:+20~-65ºCC≤60min
Recirculating water flow (t/h) (water-cooled equipment only)0.6111220.611
Main power switch (A)4040636340
Power(kVA)3.34.24.25.78.48.422.23.5
Weight(kg)140150180230240290120130160
