Product Overview
Technical Specification

Attractive Design
Rosen Lithium battery has compact design,
LCD screen,convenient setting buttons,
bluetooth Monitor on your smartphones,
and cables&accessories ready for installation.
To welcome the world cooperation we accept
OEM with your logo design!
Rosen Lithium battery has compact design,
LCD screen,convenient setting buttons,
bluetooth Monitor on your smartphones,
and cables&accessories ready for installation.
To welcome the world cooperation we accept
OEM with your logo design!

Wide Application

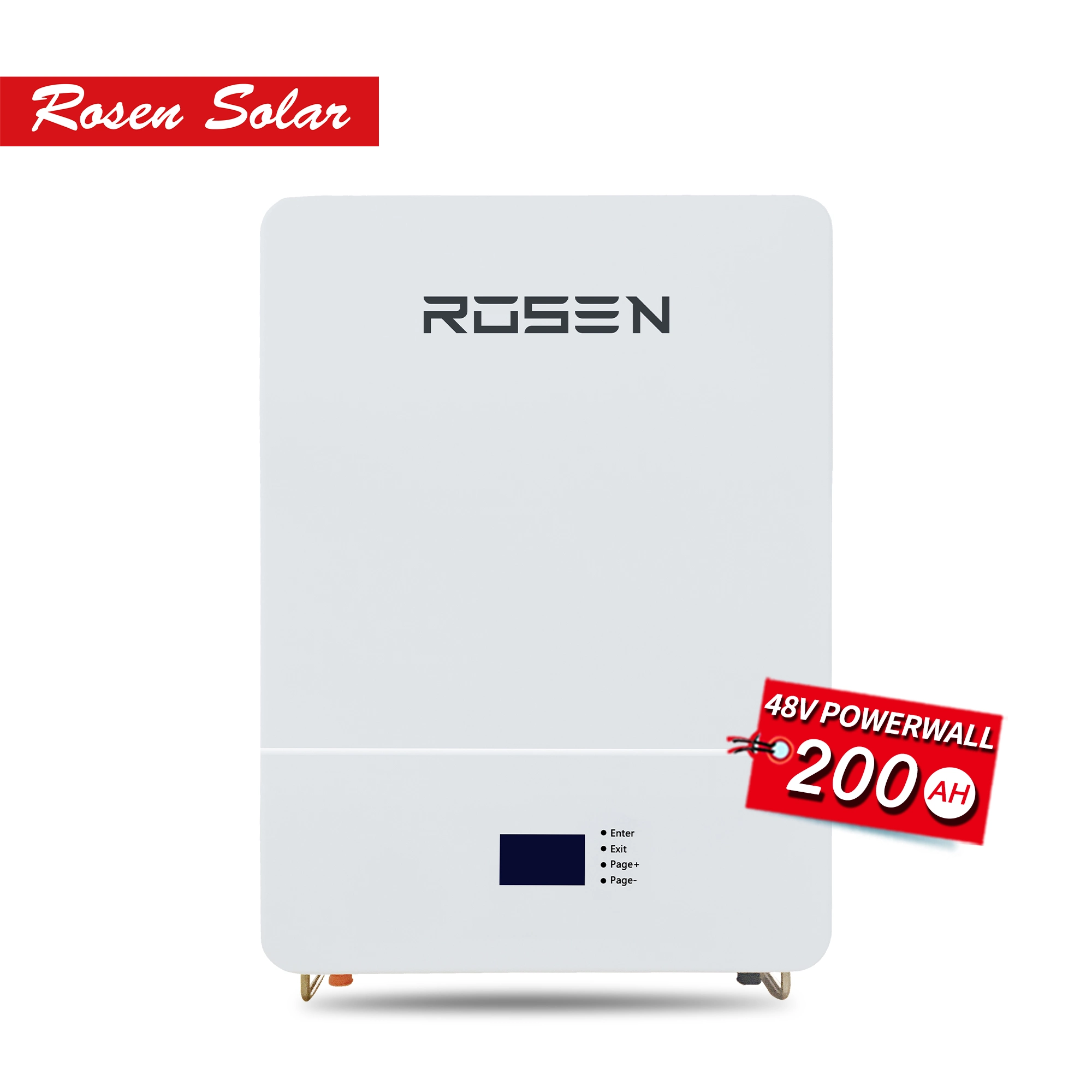

Rosen Lithium Ion Powerwall series are widely
used in Solar Systems for residential and
commercial use. With more than 6000 times
deep cycle, up to 90% DOD and phosphate
battery Cell, Rosen Powerwall has won global
approval!
Rosen Lithium Ion Powerwall series are widely
used in Solar Systems for residential and
commercial use. With more than 6000 times
deep cycle, up to 90% DOD and phosphate
battery Cell, Rosen Powerwall has won global
approval!

Integrated Function
Rosen Powerwall can be installed in parallel
with combiner box for protection, with it's
integrated BMS communication protocol
to comprehensive hybrid and off grid inverters!
Rosen Powerwall can be installed in parallel
with combiner box for protection, with it's
integrated BMS communication protocol
to comprehensive hybrid and off grid inverters!
Type | Module | Powerwall | ||
Model | LFP48V50AH | LFP48V100AH | LFP48V150AH | LFP48V200AH |
Battery Capacity [Ah] | 50Ah | 100Ah | 150Ah | 200Ah |
Nominal Battery Energy [kwh] | 2.4 | 4.8 | 7.2 | 9.6 |
Max Discharge Current [A] | 50 | 100 | 150 | 200 |
Net Weight | 35 | 68 | 95 | 108 |
Dimension [H*W*D, mm] | 442*480*88 | 680*495*185 | 680*495*185 | 680*495*185 |
Operating Temperature Range | -20 ~ 50 [ºC ] | |||
Life Cycles | >6000 | |||
Nominal Voltage [V] | 48Vdc | |||
Communication | CAN/RS485/DRY CONTACT | |||
Certificate & Safety Standard | TUV / CE / EN62619 / IEC62040 / UN38.3 | |||
Warranty | 10 Years | |||
Alarms | Battery Operation/Out of Battery/System fault | |||
Pros | Applied in off-grid and hybrid system, Compact Design, Modular Expansion | |||
Monitoring & Protection | With BMS protection in each Module, and breaker embedded in the system |

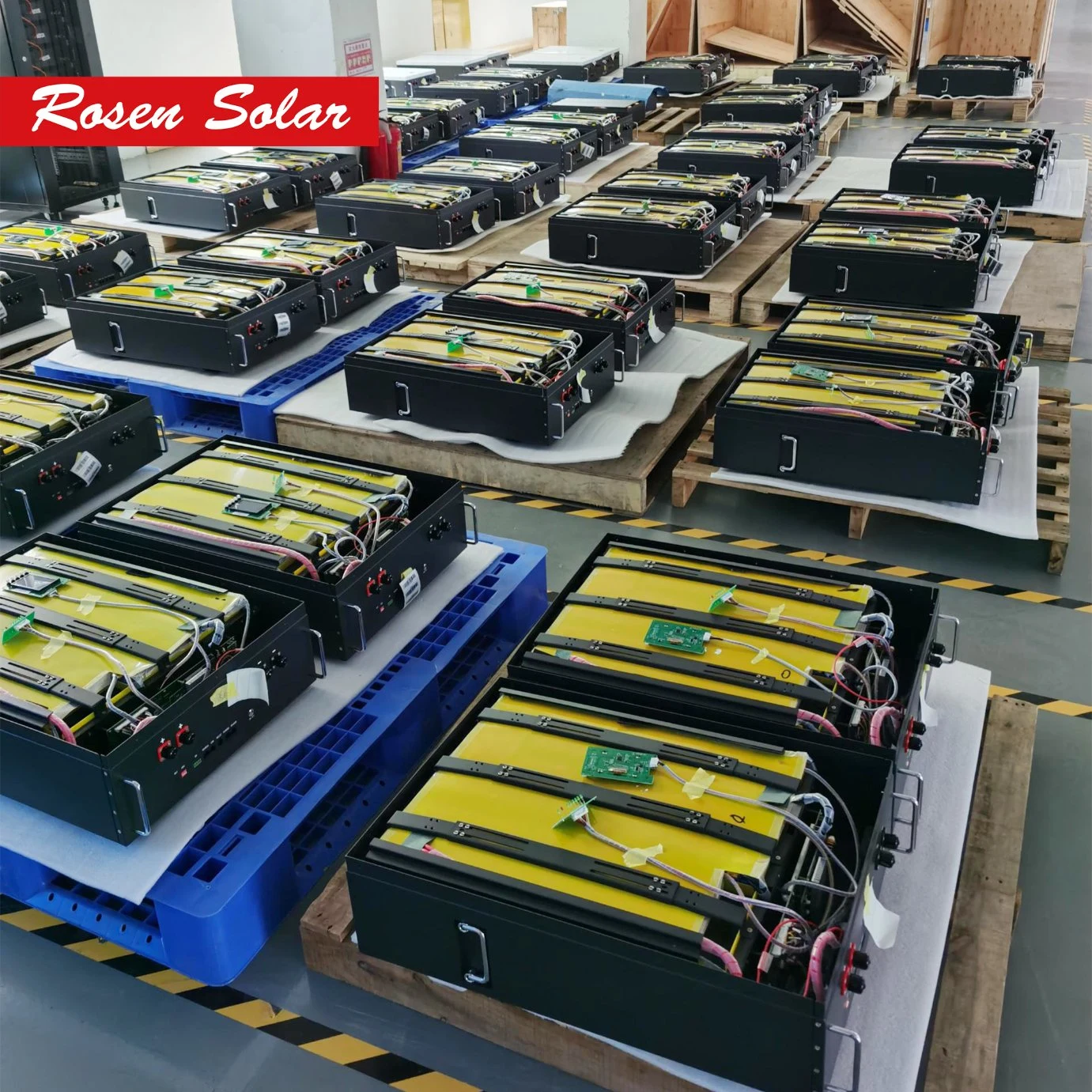

Lithium Battery Production
Package & Delivery
Battery Application
